FerrAlert "Solo" Ferromagnetic Detection System

Item Number: SM-132

Installed in the controlled pre-screening zone, FerrAlert™ SOLO is the highest sensitivity, full-body patient and personnel pre-screener available to MRI providers. Our Proprietary Sensor Technology allows for the detection of very small ferromagnetic objects, such as a typical hairpin or paperclip.

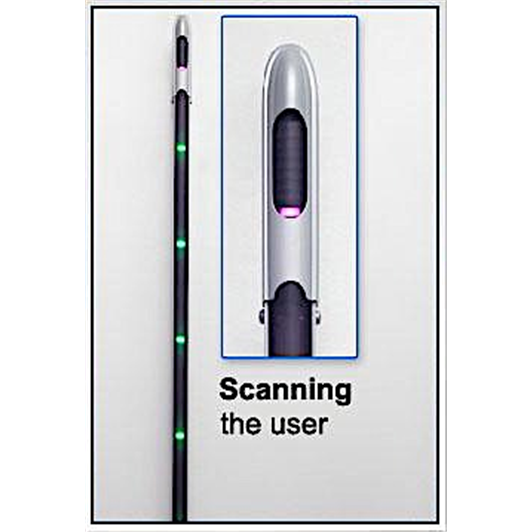

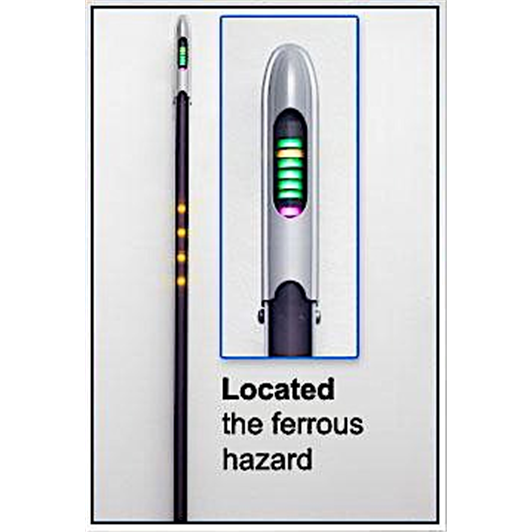

INSTANTLY PINPOINTS LOCATION OF FERROMAGNETIC OBJECT allowing the Technologist to quickly and easily identify all ferromagnetic objects – NO invasive pat-down or handheld detectors required

PROVIDES CONSISTENT, UNAMBIGUOUS AND SIMPLE Self-Screening or Supervised Screening

ACTIVATES WITHOUT TOUCH, thus safeguards against dangerous cross-contamination

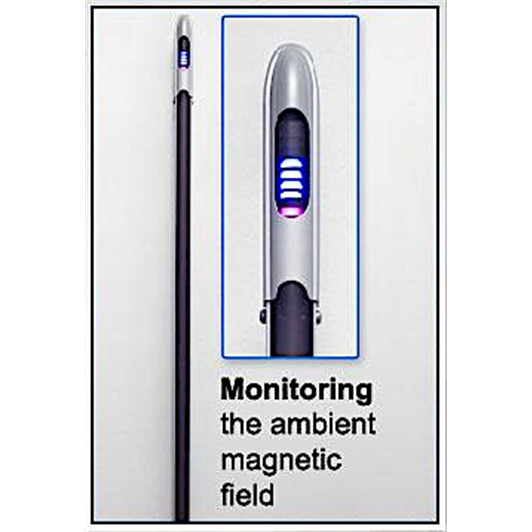

CONSTANTLY MONITORS THE AMBIENT MAGNETIC FIELD and provides Early Visual Warning of approaching ferromagnetic objects

INEXPENSIVE – affordable for all MRI facilities

PATENTED TECHNOLOGY SUPPRESSES FALSE WARNINGS while providing the HIGHEST SENSITIVITY to ferromagnetic threats. This technological advancement reduces alarm fatigue and increasing throughput. The use of 12 sensors ensures uniform sensitivity and detection reliability from head to toe.

ADDITIONAL FEATURES

MULTIPLE LOCATION-ACCURATE SENSORS for ACCURATE and FAST finding of a ferromagnetic object

SAFE, PASSIVE DETECTION no electromagnetic radiation, RF radiation, or magnetic field

ADJUSTABLE SENSITIVITY AND AUDIO ALARM LEVELS

ELEGANT, SMALL FOOTPRINT INSTALLATION.

AVAILABLE AS A PORTABLE, BATTERY-POWERED SYSTEM

CONFORMS TO ALL APPLICABLE RECOMMENDATIONS AND STANDARDS including FDA, ACR, AAMI, Joint Commission, FGI and VA

COMPREHENSIVE SELF TEST FUNCTION for hospital periodic maintenance requirements as well as piece of mind

SPECIFICATIONS

Dimensions:
Height 86 1/4"e; (220 cm)
Depth 2 1/2"e; (6.5 cm), Width 2"e; (5 cm)
Complies with ES60601-1-8 International Standards for Medical Device Alarms
Complies with IEC 60101-1:2005 Medical Device Specification Requirements
Medical Power Supply: 100 to 240 VAC 47 to 63 Hz 42 watts
Sensitivity: Adjustable
Ambient Magnetic Disturbance Indicator: Eight (8) blue bars
Audio Alarm: Selectable, adjustable volume
Mounting: Wall or free-standing with optional base
Battery Operation: Optional

Pre-Screening is also available in the PORTAL configuration:

FerrAlert™ PRESCREEN II - Model H20

It is useful to screen non-ambulatory patients for the presence of small ferromagnetic objects, when used with non-ferrous patient transports. For information on non-ferrous patient transports, please visit our “Non Ferrous Products"e; page.

All FerrAlert™ products are entirely passive in operation and are completely safe for your staff, patients and MRI image quality.

Reminder: Ferromagnetic detectors should not replace current MRI Pre- screening procedures. To provide your patients and personnel with the most comprehensive safety, the use of diligent screening protocol together with our high quality ferromagnetic detectors is recommended.
