Item Number: SKU:US-297, US-300

Clinton Imaging Table with Fowler Back and Drop Window

$4,936.00

Sale

Shipping calculated at checkout.

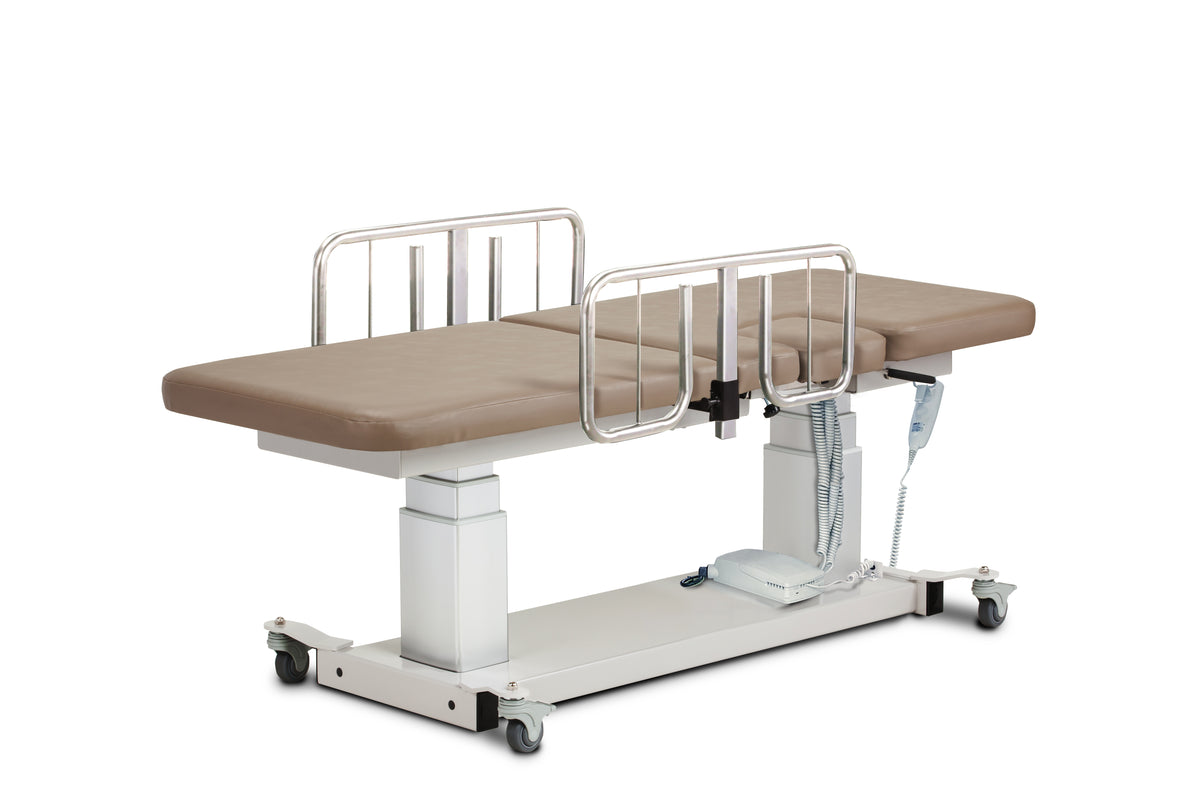

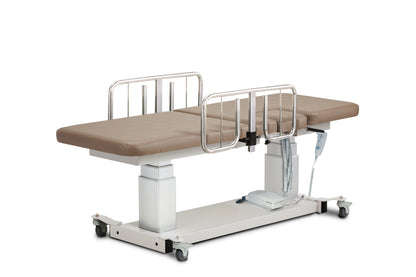

Designed for flexible positioning and convenient access during imaging procedures, this power imaging table features a two-piece top with a pneumatic adjustable Fowler backrest and integrated drop window. Power height adjustment, Trendelenburg positioning, and a rigid dual-column lift system provide dependable stability and versatility for a variety of imaging applications.

Features:

Two-piece top with manual pneumatic adjustable backrest and drop window
Backrest adjusts up to 80° and lowers to a flat position
10" x 10" drop window provides convenient access during imaging procedures
Power height adjustment with easy-to-use hand control
Trendelenburg and Reverse Trendelenburg positioning up to ±15°
All-welded base and top frame for durability and stability
Dual-column lift system provides added rigidity
Unobstructed base design for convenient access
Includes paper dispenser, cutter, positioning straps and side rails
Heavy duty, rubber wheel, easy-roll locking casters
Height range of 21.5" to 37.5"
500 lb. standard lift capacity

Overall Dimensions:

72"W x 27"L

To purchase, please select color

Quantity

View full details

Frequently Asked Questions

How do I choose between the US-297 and the US-298?

The main consideration is independent leg positioning. The US-297 has a two-piece top without a separate adjustable footrest, while the US-298 three-section imaging table includes a manual footrest. If your exams require the leg section to lower separately from the rest of the tabletop, the US-298 provides that additional adjustment.

Is raising the Fowler back the same as tilting the table?

No. Raising the Fowler back changes the angle of the patient’s upper-body support, while Trendelenburg and Reverse Trendelenburg tilt the tabletop as a whole. These adjustments serve different positioning needs and are not interchangeable. Choose the position required by your examination protocol and follow Clinton’s operating instructions for each control.

Will the drop window work for scanning from either side?

Do not assume that the opening provides equivalent access from both sides of the table. Its location relative to the patient, sonographer, and ultrasound system affects how it can be used during an exam. Before ordering, confirm the window’s placement against your scanning approach, especially if staff routinely work from a particular side.

Can this table be used for MRI examinations?

No. The US-297 is labeled MR Unsafe and must not be brought into an MRI scanner room. Its imaging designation does not establish MRI compatibility, and the drop window does not change that classification. If your department needs equipment for use around an MRI scanner, we can help you review products with the appropriate MR safety designation.

Which table should I choose if our exams require stirrups?

If your procedures require stirrups, we recommend comparing the US-297 with our multi-use imaging table with stirrups and a drop window. That model combines both features for departments performing imaging and examinations that need supported leg positioning. Selecting a table equipped for your procedures from the start avoids relying on later modifications.
